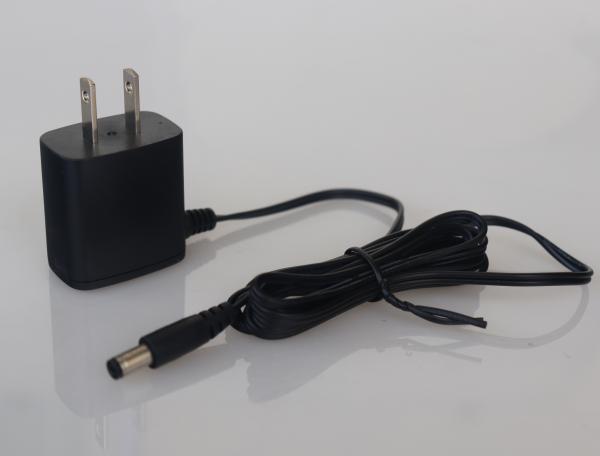

Switching Mode 14V 500mA Charger 7W Black Color For PSE Plug

    Buy cheap Switching Mode 14V 500mA Charger 7W Black Color For PSE Plug from wholesalers

    Buy cheap Switching Mode 14V 500mA Charger 7W Black Color For PSE Plug from wholesalers
    • Buy cheap Switching Mode 14V 500mA Charger 7W Black Color For PSE Plug from wholesalers

    Switching Mode 14V 500mA Charger 7W Black Color For PSE Plug

    Ask Lasest Price
    Brand Name : Analog
    Model Number : GQ06-140050-ZJ
    Certification : PSE/UL/GS/UKCA/KC/SAA
    Price : 1.2-1.8USD/PCS
    Payment Terms : T/T, L/C
    Supply Ability : 1,600,000~1,800,000PCS/Month
    Delivery Time : 10-25 work days
    • Product Details
    • Company Profile

    Switching Mode 14V 500mA Charger 7W Black Color For PSE Plug

    Switching Mode 14V 500mA Charger 7W Black Coolor For PSE Plug


    Description

    6W.single-output switch power adapter/lP20

    GQ06 products are our 6W series switching power adapter products, the maximum power can reach 6.75W output . The pins are both fixed and replaceable. They have excellent performance in temperature rise and EMI. They meet the US Class VI energy efficiency and the EU CoC Phase 2 energy efficiency requirements. They have high-precision output OVP, OCP, OTP,SCP and other reliable protection functions. Effectively protect the power supply safety of terminal equipment and the safety of users.


    ItemSpecification Datasheet TableNote
    DescriptionProduct namesingle-output switch power adapter
    Product typeWall mount/Desktop/InterchangeCustom Design Available
    ModelGQ06-090050-ZJ
    Supply Ability1,600,000~1,800,000PCS/month
    Applicationas per customer requirments,etcCustom Design Available
    Mechanical PerformanceColorBlack or WhiteCustom Design Available
    DimensionsSubjected to final designCustom Design Available
    Output DC Connector5.5x2.1x10mm optionalCustom Design Available
    DC Cord / DC JackL=1.2m / 1.5m or CustomizedCustom Design Available
    Plug typeEU ,UK, US, AU, KC, PSE...Custom Design Available
    Electrical PerformanceOutput Voltage9V
    Output Current

    0.5A

    Output Power4.5W
    Output Ripple VoltagePlease refer to the specification datasheet for approvalCustom Design Available
    Input Voltage & Frequency90VAC~264VAC, 47~63HZ
    Maximum AC CurrentPlease refer to the specification datasheet for approval
    Input Inrush Current40A(RMS) Max, full load tested @AC230V 50HZ
    EfficiencyVICustom Design Available
    ProtectionOVP,OCP,OTP,SCP & Input Protection
    Environmental requirementsOperating Temperature0~40 ℃,
    Storage Temperature-40~70 ℃
    Operating Humidity5%~90% Non-condensing
    Storage Humidity5%~90% Non-condensing
    ReliabilityWarranty2 year (about 2.28 years for 24-hour-operation a day)Custom Design Available
    MTBF>20,000 hour
    Insulation Resistanc> 30MΩ@500VDC; 60SCustom Design Available
    Hi-PotMeet different safety standard
    Leakage Current0.25mA Max, full load tested @AC230V 50HZ
    Compliance with EU directives law & regulationsRoHS,REACH,PAHS
    Safety StandardCertificateUL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBRCustom Design Available
    StandardsIEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc...Custom Design Available
    EMCPart 15 compliance
    ESD(Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2)Custom Design Available
    Surge±1KV @ common or different modeCustom Design Available




    Optional Plug:UL /GS/BS/SAA/CCC/PSE/EAC


    Switching Mode 14V 500mA Charger 7W Black Color For PSE Plug

    Output Features:

    Output VoltageOutput CurrentOutput Power
    3.0Vdc-6.0Vdc0.01A-1.2A6.0W Max
    6.1Vdc-9.9Vdc0.01A-1.0A6.0W Max
    10.0Vdc-15Vdc0.01A-0.5A7.5W Max
    15Vdc-24Vdc0.01A-0.4A6W Max


    Safety

    CB-----------IEC 61558-1/ IEC61558-2-16,IEC60065,IEC60950,IEC 61347-1 /IEC 61347-2-13
    GS BS ---------EN61558-1/EN61558-2-16,EN62368,EN 61347-1/EN 6134 7-2-13
    ETL-----------ETL 1310(1P20),ETL62368
    PSE-----------J61558
    SAA------------AS/NZS 60950
    CCC------------GB4943.1-2011 ;GB/T9254-2008;GB17625.1-2012
    CE/EMC-----------EN55032/E N 55024, EN55032/E N 55020, EN55014-1 /EN 55014-2,
    FCC-----------Part 158
    C-TICK-----------AS/NZS CISPR 22



    FAQ



    1. What safety certificate do you have?

    We got safety standards inculding but not limited to
    UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.


    2. How about the energy efficiency?
    All our adapters can meet level VI efficiency and ROHS,REACH compatible.


    3. How about sample? For free?
    Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.


    4. How long can we get samples?
    3 ~ 5 days for regular adapters or led driver.
    And 20-25 work days for mass production.


    5. What is MOQ?
    Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
    like big quantity for the whole order but small quantity for trial order of each model.


    6. Do you accept OEM/ODM service? Can I have my own logo on the adapter?
    Yes, OEM or ODM is available.


    7. What Customers you company have Served?
    Customer groups include well-known brand companies especially in small household appliances & Led lighting industry such as
    Shark,invitop,Wilit, Interplus,ELECTROLUX,LG,Xiaomi,Haier,Midea,covering many countries and regions around the world.


    8. Can you put my own logo for our order?
    Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.


    9. How about the warranty of your product?
    Generally we offer 2-year warranty(about 2.28 years for 24-hour-operation a day) for adapters and led drivers.
    Quality is the most important for long-term business partnership,
    and it is also our company aim to offer high quality and guaranteed products to help our clients grow business and expand their target markets.



    10. What is the application for your switching power adapter?

    Our adapters are widely used in home appliance and industrial Sweeper, scrubber, vacuum cleaner, dehumidifier, air purifier, humidifier, aroma diffuser, air cooler, Sealing machine, vacuum packaging machine, LED lighting, plant light, power tool products, smart wear,IT equipment and security equipment etc.
