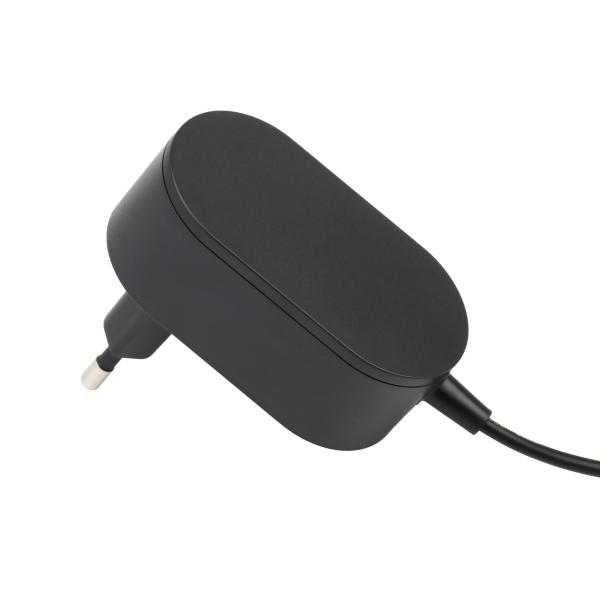

    Wall Mounted 12V DC 800ma Power Supply 9.6W For Korean Market

    Ask Lasest Price
    Brand Name : Analog
    Model Number : BZ15-120080-AK
    Certification : K60950 K62368
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1,600,000~1,800,000PCS/Month
    Delivery Time : 10-25 work days
    • Product Details
    • Company Profile

    Wall Mounted 12V DC 800ma Power Supply 9.6W For Korean Market

    Wall Mounted 12V DC 800ma Power Supply 9.6W For Korean Market

    The power adapter is also called an external power supply.

    It is a power supply voltage conversion device for small portable electronic devices and electronic appliances.

    It is commonly used in small electronic products such as mobile phones, LCD monitors, and notebook computers.

    Output Features

    Model Name Output Voltage(VDC) Output Current (A) Output Power(W ).
    GQ/BZ15-XXX-YYY-WW 8.4~13.0 0.01~1.6 15.00
    GB/BZ=ANALOG Company Code 13.1~18.0 0.01~1.15 15.00
    15=Out Power 15W Series 18.1~24.9 0.01~0.8 15.00
    XXX=Output Voltage 24 0.01~0.65 15.60
    YYY=Output Current 25~32 0.01~0.6 15.00
    WW=Plug Type

    Application: sweep machine, sweeper etc...

    Model List and Deviation

    NO. Model number Output
    Voltage (V)
    Output
    Current (A)
    Output power (W)
    Basic Model BZ015-200076-AK 20 0.76 15.2
    1 BZ015-100080-AK 10 0.80 8
    2 BZ015-100090-AK 10 0.90 9
    3 BZ015-100100-AK 10 1.00 10
    4 BZ015-110080-AK 11 0.80 8.8
    5 BZ015-110090-AK 11 0.90 9.9
    6 BZ015-110100-AK 11 1.00 11
    7 BZ015-120060-AK 12 0.60 7.2
    8 BZ015-120070-AK 12 0.70 8.4
    9 BZ015-120080-AK 12 0.80 9.6
    10 BZ015-120090-AK 12 0.90 10.8
    11 BZ015-120100-AK 12 1.00 12
    12 BZ015-126060-AK 12.6 0.60 7.56
    13 BZ015-126070-AK 12.6 0.70 8.82
    14 BZ015-126080-AK 12.6 0.80 10.08
    15 BZ015-126090-AK 12.6 0.90 11.34
    16 BZ015-126095-AK 12.6 0.95 11.97
    17 BZ015-126100-AK 12.6 1.00 12.6
    18 BZ015-130060-AK 13 0.60 7.8
    19 BZ015-130070-AK 13 0.70 9.1
    20 BZ015-130080-AK 13 0.80 10.4
    21 BZ015-130090-AK 13 0.90 11.7
    22 BZ015-138060-AK 13.8 0.60 8.28
    23 BZ015-138070-AK 13.8 0.70 9.66
    24 BZ015-138080-AK 13.8 0.80 11.04
    25 BZ015-140050-AK 14 0.50 7
    26 BZ015-140060-AK 14 0.60 8.4
    27 BZ015-140070-AK 14 0.70 9.8
    28 BZ015-140080-AK 14 0.80 11.2
    29 BZ015-140090-AK 14 0.90 12.6
    30 BZ015-140090-AK 14 1.00 14
    31 BZ015-150050-AK 15 0.50 7.5
    32 BZ015-150060-AK 15 0.60 9
    33 BZ015-150070-AK 15 0.70 10.5
    34 BZ015-150080-AK 15 0.80 12
    35 BZ015-160060-AK 16 0.60 9.6
    36 BZ015-160070-AK 16 0.70 11.2
    37 BZ015-160075-AK 16 0.75 12
    38 BZ015-170060-AK 17 0.60 10.2
    39 BZ015-170070-AK 17 0.70 11.9
    40 BZ015-175055-AK 17.5 0.55 9.625
    41 BZ015-175060-AK 17.5 0.60 10.5
    42 BZ015-175065-AK 17.5 0.65 11.375
    43 BZ015-175070-AK 17.5 0.70 12.25
    44 BZ015-180050-AK 18 0.50 9
    45 BZ015-180060-AK 18 0.60 10.8
    46 BZ015-180070-AK 18 0.70 12.6
    47 BZ015-180080-AK 18 0.80 14.4
    48 BZ015-190050-AK 19 0.50 9.5
    49 BZ015-190055-AK 19 0.55 10.45
    50 BZ015-190060-AK 19 0.60 11.4
    51 BZ015-190065-AK 19 0.65 12.35
    52 BZ015-200050-AK 20 0.50 10
    53 BZ015-200056-AK 20 0.56 11.2
    54 BZ015-200060-AK 20 0.60 12
    55 BZ015-200076-AK 20 0.70 14
    56 BZ015-200076-AK 20 0.76 15.2
    57 BZ015-210050-AK 21 0.50 10.5
    58 BZ015-210060-AK 21 0.60 12.6
    59 BZ015-220040-AK 22 0.40 8.8
    60 BZ015-220050-AK 22 0.50 11
    61 BZ015-220060-AK 22 0.60 13.2
    62 BZ015-230040-AK 23 0.40 9.2
    63 BZ015-230050-AK 23 0.50 11.5
    64 BZ015-230060-AK 23 0.60 13.8
    65 BZ015-240030-AK 24 0.30 7.2
    66 BZ015-240035-AK 24 0.35 8.4
    67 BZ015-240040-AK 24 0.40 9.6
    68 BZ015-240045-AK 24 0.45 10.8
    69 BZ015-240050-AK 24 0.50 12
    70 BZ015-240055-AK 24 0.55 13.2
    71 BZ015-240060-AK 24 0.60 14.4
    72 BZ015-250040-AK 25 0.40 10
    73 BZ015-250045-AK 25 0.45 11.25
    74 BZ015-250050-AK 25 0.50 12.5
    75 BZ015-250055-AK 25 0.55 13.75
    76 BZ015-260030-AK 26 0.30 7.8
    77 BZ015-260040-AK 26 0.40 10.4
    78 BZ015-260045-AK 26 0.45 11.7
    79 BZ015-260050-AK 26 0.50 13
    80 BZ015-260055-AK 26 0.55 14.3
    81 BZ015-265045-AK 26.5 0.45 11.925
    82 BZ015-265050-AK 26.5 0.50 13.25
    83 BZ015-265055-AK 26.5 0.55 14.575
    84 BZ015-270030-AK 27 0.30 8.1
    85 BZ015-270040-AK 27 0.40 10.8
    86 BZ015-270045-AK 27 0.45 12.15
    87 BZ015-270050-AK 27 0.50 13.5
    88 BZ015-270055-AK 27 0.55 14.85
    89 BZ015-280030-AK 28 0.30 8.4
    90 BZ015-280040-AK 28 0.40 11.2
    91 BZ015-280045-AK 28 0.45 12.6
    92 BZ015-280050-AK 28 0.50 14
    93 BZ015-290030-AK 29 0.30 8.7
    94 BZ015-290040-AK 29 0.40 11.6
    95 BZ015-290045-AK 29 0.45 13.05
    96 BZ015-290050-AK 29 0.50 14.5
    97 BZ015-300030-AK 30 0.30 9
    98 BZ015-300040-AK 30 0.40 12
    99 BZ015-300045-AK 30 0.45 13.5
    100 BZ015-300050-AK 30 0.50 15

    Application

    Application Field Products including but not limited to

    Home/Household Appliances

    (IEC61558)

    Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker
    Led Lighting(IEC61347) Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led,

    IT Communications Equipment

    (IEC62368=IEC60950+IEC60065)

    Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE...
    Audio Equipment(IEC62368) Speakers,Recording Machine,Microphone
    Video Equipment(IEC62368) STB TV box,Computers
    Security Device(IEC62368) Monitor,CCTV cameras,

    Household and Similar

    Electrical Appliances

    (IEC60335)

    Electrical devices with lithium battery power supply requires battery charge adapter
    Power Units( ETL1310) Electronic, electrical, mechanical or electron-mechanical products
    Other Industries UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector

    Product Model Identification
    GQ/BZ- 15 xxx yyy ww z
    Company code for Analog
    Output power rating series code
    Output voltage code
    Output current code
    Plug Type
    Appliance
    For example: Product model BZ15-120080-AK,stands for Analog brand swithing adapter with 15W series power,12V output voltage,800mA Output current, plug type is Korea Plug

    Specification Datasheet Table

    Item Specification Datasheet Table Note
    Description Product name single-output switch power adapter
    Product type Wall mount/Desktop/Interchange Custom Design Available
    Model BZ15-120080-AK
    Supply Ability 1,600,000~1,800,000PCS/month
    Application as per customer requirments,etc Custom Design Available
    Mechanical Performance Color Black or White Custom Design Available
    Dimensions Subjected to final design Custom Design Available
    Output DC Connector 5.5x2.1x10mm optional Custom Design Available
    DC Cord / DC Jack L=1.2m / 1.5m or Customized Custom Design Available
    Plug type EU ,UK, US, AU, KC, PSE... Custom Design Available
    Electrical Performance Output Voltage & Frequency 12V
    Output Current 0.8A
    Output Power 9.6W
    Ripple/Noise
    300mVp-p Max.
    Custom Design Available
    Input Voltage & Frequency 90VAC~264VAC, 47~63HZ
    Maximum AC Current Please refer to the specification datasheet for approval
    Input Inrush Current 40A(RMS) Max, full load tested @AC230V 50HZ
    Efficiency VI Custom Design Available
    Protection OVP,OCP,OTP,SCP & Input Protection
    Environmental requirements Operating Temperature 0~40 ℃,
    Storage Temperature -40~70 ℃
    Operating Humidity 5%~90% Non-condensing
    Storage Humidity 5%~90% Non-condensing
    Reliability Warranty 2 year (about 2.28 years for 24-hour-operation a day) Custom Design Available
    MTBF >20,000 hour
    Insulation Resistanc > 30MΩ@500VDC; 60S Custom Design Available
    Hi-Pot Meet different safety standard
    Leakage Current 0.25mA Max, full load tested @AC230V 50HZ
    Compliance with EU directives law & regulations RoHS,REACH,PAHS
    Safety Standard Certificate UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR Custom Design Available
    Standards IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... Custom Design Available
    EMC EN55014-1/EN55014-2 compliance
    ESD (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) Custom Design Available
    Surge ±1KV @ common or different mode Custom Design Available

    Plug Type Identification
    Series No. Plug Type Style Code Description
    A_ Front style plug AU US front style AC Plug
    AA Austrialian front style AC Plug
    AG European front style AC Plug
    AJ Japanese front style AC Plug
    AK Korean front style AC Plug
    AB British front style AC Plug
    AR Russian front style AC Plug
    AX Interchangeable front style AC Plug
    AC Chinese front style AC Plug
    ABS Singaporean plug(changeable)
    AA1 Argentina front style AC Plug
    AUM Mexico front style AC plug
    H_or C_ Side style plug HU/CU US side style AC Plug
    HA/CA Austrialian side style AC Plug
    HG/CG European side style AC Plug
    HJ/CJ Japanese side style AC Plug
    HK/CK Korean side style AC Plug
    HB/CB British side style AC Plug
    HR/CR Russian side style AC Plug
    HX/CX Interchangeable side style AC Plug
    HC/CC Chinese side style AC Plug
    Z_ Inline style plug ZU US inline style AC Plug
    ZA Austrialian inline style AC Plug
    ZG European inline style AC Plug
    ZJ Japanese inline style AC Plug
    ZK Korean inline style AC Plug
    ZB British inline style AC Plug
    ZR Russian inline style AC Plug
    ZX Interchangeable inline style AC Plug
    ZC Chinese inline style AC Plug
    E _ Applicance type E1 Input with type C14/C6 used
    E2 Desk-top input with type C8 used
    E3 Fixed power cord ungrounded
    E4 Fixed power cord grounded

    Wall Mounted 12V DC 800ma Power Supply 9.6W For Korean Market

    FAQ

    1. Are you a manufacturer or trading company?

    We are a factory with 12000 ㎡ plant and more than 400 staffs in 8 production lines
    Currently there are 2 production lines are expecting for orders,
    Which means 1,600,000~1,800,000PCS monthly production capacity available for your orders.

    2. Why choose us?
    We are one-stop solution for high quality power adapter & switching power supply.
    Fomerly as a wholly-owned subsidiary of "Dongguan Gangqi Group" which R&D & manufacture power adapters since 2004.


    3. What safety certificate do you have?

    We got safety standards inculding but not limited to
    UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.

    4. How about the energy efficiency?
    All our adapters can meet level VI efficiency and ROHS,REACH compatible.

    5. How about sample? For free?
    Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.

    6.How long can we get samples?


    3 ~ 5 days for regular adapters or led driver.
    And 20-25 work days for mass production.

    7. What is MOQ?
    Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
    like big quantity for the whole order but small quantity for trial order of each model.

    8. Do you accept OEM/ODM service? Can I have my own logo on the adapter?
    Yes, OEM or ODM is available.
