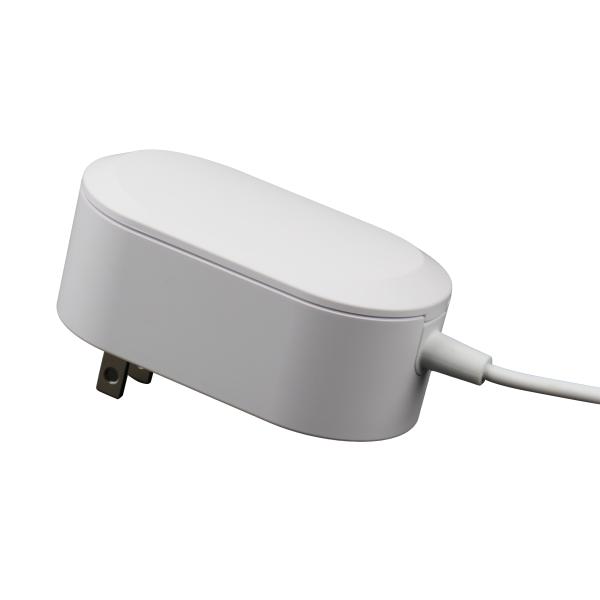

Ac Dc Switching Power Adapter 800mA 30V With UL Safety

    Buy cheap Ac Dc Switching Power Adapter 800mA 30V With UL Safety from wholesalers

    Buy cheap Ac Dc Switching Power Adapter 800mA 30V With UL Safety from wholesalers
    • Buy cheap Ac Dc Switching Power Adapter 800mA 30V With UL Safety from wholesalers
    • Buy cheap Ac Dc Switching Power Adapter 800mA 30V With UL Safety from wholesalers
    • Buy cheap Ac Dc Switching Power Adapter 800mA 30V With UL Safety from wholesalers

    Ac Dc Switching Power Adapter 800mA 30V With UL Safety

    Ask Lasest Price
    Brand Name : Analog
    Model Number : GQ30-300080-AU
    Certification : ETL1310/FCC
    Price : 1-5USD
    Payment Terms : T/T
    Supply Ability : 1,600,000~1,800,000PCS/Month
    Delivery Time : 10-25 work days
    • Product Details
    • Company Profile

    Ac Dc Switching Power Adapter 800mA 30V With UL Safety

    ac dc switching power adapter 800mA 30V With UL safety


    Strength

    1. Factory supply directly with powerful supply ability
    2. Completed safety certificates such as UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR/CCC,etc
    3. Strict temperature control standard
    4. 94V-0 PC shell with higher fireproof level
    5. OEM & ODM available
    6. Strong ability of development dept.

    Product Description


    Output Voltage(VDC)Output Current (A)Output Power(W )
    8.4~12.60.01~2.5024.00
    8.4~12.60.01~3.0030.00
    12.7~18.00.01~2.3030.00
    18.1~25.20.01~1.5030.00
    25.3~37.80.01~1.1530.24

    Application: Air Purifier/Cleaner/Sweeper/Window Wiper



    Specification Datasheet Table


    ItemSpecification Datasheet TableNote
    DescriptionProduct namesingle-output switch power adapter
    Product typeWall mount/Desktop/Interchange
    ModelBZ030-30080-AU
    Supply Ability1,600,000~1,800,000PCS/month
    Applicationas per customer requirments,etc
    Mechanical PerformanceColorBlack or White
    DimensionsSubjected to final design
    Output DC Connector5.5x2.1x10mm optional
    DC Cord / DC JackL=1.2m / 1.5m or Customized
    Plug typeEU ,UK, US, AU, KC, PSE...
    Electrical PerformanceOutput Voltage & Frequency30V
    Output Current0.8A
    Output Power30W
    Ripple/Noise
    300mVp-p Max.
    Input Voltage & Frequency90VAC~264VAC, 47~63HZ
    Maximum AC CurrentPlease refer to the specification datasheet for approval
    Input Inrush Current40A(RMS) Max, full load tested @AC230V 50HZ
    EfficiencyVI
    ProtectionOVP,OCP,OTP,SCP & Input Protection
    Environmental requirementsOperating Temperature0~40 ℃,
    Storage Temperature-40~70 ℃
    Operating Humidity5%~90% Non-condensing
    Storage Humidity5%~90% Non-condensing
    ReliabilityWarranty2 year (about 2.28 years for 24-hour-operation a day)
    MTBF>20,000 hour
    Insulation Resistanc> 30MΩ@500VDC; 60S
    Hi-PotMeet different safety standard
    Leakage Current0.25mA Max, full load tested @AC230V 50HZ
    Compliance with EU directives law & regulationsRoHS,REACH,PAHS
    Safety StandardCertificateUL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR
    StandardsIEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc...
    EMCEN55014-1/EN55014-2 compliance
    ESD(Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2)
    Surge±1KV @ common or different mode

    Connector


    Plug Type Identification
    Series No.Plug Type StyleCodeDescription
    A_Front style plugAUUS front style AC Plug
    AAAustrialian front style AC Plug
    AGEuropean front style AC Plug
    AJJapanese front style AC Plug
    AKKorean front style AC Plug
    ABBritish front style AC Plug
    ARRussian front style AC Plug
    AXInterchangeable front style AC Plug
    ACChinese front style AC Plug
    ABSSingaporean plug(changeable)
    AA1Argentina front style AC Plug
    AUMMexico front style AC plug
    H_or C_Side style plugHU/CUUS side style AC Plug
    HA/CAAustrialian side style AC Plug
    HG/CGEuropean side style AC Plug
    HJ/CJJapanese side style AC Plug
    HK/CKKorean side style AC Plug
    HB/CBBritish side style AC Plug
    HR/CRRussian side style AC Plug
    HX/CXInterchangeable side style AC Plug
    HC/CCChinese side style AC Plug
    Z_Inline style plugZUUS inline style AC Plug
    ZAAustrialian inline style AC Plug
    ZGEuropean inline style AC Plug
    ZJJapanese inline style AC Plug
    ZKKorean inline style AC Plug
    ZBBritish inline style AC Plug
    ZRRussian inline style AC Plug
    ZXInterchangeable inline style AC Plug
    ZCChinese inline style AC Plug
    E _Applicance typeE1Input with type C14/C6 used
    E2Desk-top input with type C8 used
    E3Fixed power cord ungrounded
    E4Fixed power cord grounded
