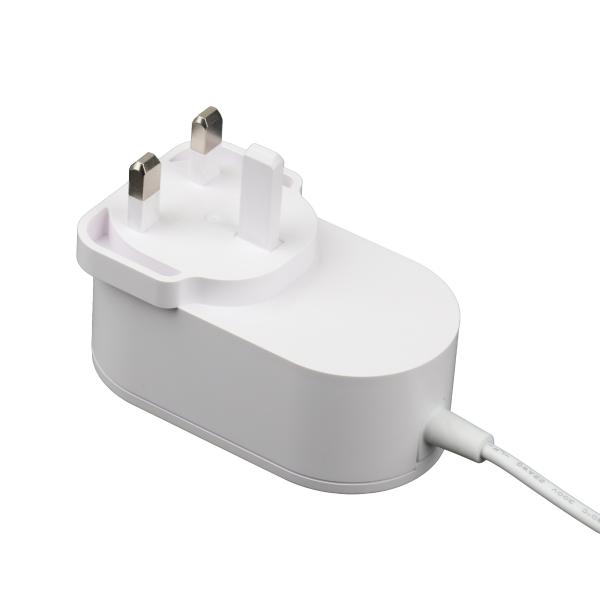

    Analog 22.5W 2.5A 9V AC DC Power Adapter With UK Plug UKCA Certificated

    Ask Lasest Price
    Brand Name : Analog
    Model Number : BZ030-090250-AB
    Certification : BS/UKCA
    Price : 1-5USD
    Payment Terms : T/T
    Supply Ability : 1,600,000~1,800,000PCS/Month
    Delivery Time : 10-25 work days
    • Product Details
    • Company Profile

    Analog 22.5W 2.5A 9V AC DC Power Adapter With UK Plug UKCA Certificated


    22.5W 2.5A 9V AC DC Power Adapter With UK Plug UKCA Certificated Approved IEC61558/60335


    The power adapter is also called external power supply.

    Its purpose is to convert the high voltage at home into a low voltage suitable for the work of electronic products.

    Specifically, the 220 volt high voltage at home is converted into a stable low voltage of about 5 to 20 volts that these electronic products can work normally.


    Advantage


    AC/DC Plug--Contains conductive metal shrapnel to improve the contact stability of the plug

    End Buffer Design--After rigorous bending experiments,it is strong and resistant to pulling

    Bold pure copper wire--Transmission voltage loss is smaller and more stable

    Adequate spacing to improve heat dissipation performance

    Use vertical anti-interference high frequency transformer to improve efficiency


    Output Features


    Output Voltage(VDC)Output Current (A)Output Power(W )
    8.4~12.60.01~2.5024.00
    8.4~12.60.01~3.0030.00
    12.7~18.00.01~2.3030.00
    18.1~25.20.01~1.5030.00
    25.3~37.80.01~1.1530.24

    Application: Strip light,Table lamp,Smart fan,Router,Humidifier,Moniton,Vacuum cleaner,vacuum sweeper



    Specification Datasheet Table


    ItemSpecification Datasheet TableNote
    DescriptionProduct namesingle-output switch power adapter
    Product typeWall mount/Desktop/InterchangeCustom Design Available
    ModelBZ030-090250-AB
    Supply Ability1,600,000~1,800,000PCS/month
    Applicationas per customer requirments,etcCustom Design Available
    Mechanical PerformanceColorBlack or WhiteCustom Design Available
    DimensionsSubjected to final designCustom Design Available
    Output DC Connector5.5x2.1x10mm optionalCustom Design Available
    DC Cord / DC JackL=1.2m / 1.5m or CustomizedCustom Design Available
    Plug typeEU ,UK, US, AU, KC, PSE,SAA...Custom Design Available
    Electrical PerformanceOutput Voltage & Frequency9V
    Output Current2.5A
    Output Power22.5W
    Ripple/Noise
    300mVp-p Max.
    Custom Design Available
    Input Voltage & Frequency90VAC~264VAC, 47~63HZ
    Maximum AC CurrentPlease refer to the specification datasheet for approval
    Input Inrush Current40A(RMS) Max, full load tested @AC230V 50HZ
    EfficiencyVICustom Design Available
    ProtectionOVP,OCP,OTP,SCP & Input Protection
    Environmental requirementsOperating Temperature0~40 ℃,
    Storage Temperature-40~70 ℃
    Operating Humidity5%~90% Non-condensing
    Storage Humidity5%~90% Non-condensing
    ReliabilityWarranty2 year (about 2.28 years for 24-hour-operation a day)Custom Design Available
    MTBF>20,000 hour
    Insulation Resistanc> 30MΩ@500VDC; 60SCustom Design Available
    Hi-PotMeet different safety standard
    Leakage Current0.25mA Max, full load tested @AC230V 50HZ
    Compliance with EU directives law & regulationsRoHS,REACH,PAHS
    Safety StandardCertificateUL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBRCustom Design Available
    StandardsIEC61558Custom Design Available
    EMCFCC part 15
    ESD(Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2)Custom Design Available
    Surge±1KV @ common or different modeCustom Design Available

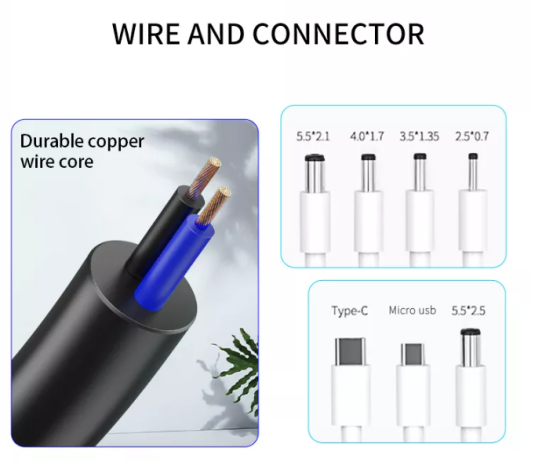

    DC Connector type


    Plug type


    Plug Type Identification
    Series No.Plug Type StyleCodeDescription
    A_Front style plugAUUS front style AC Plug
    AAAustrialian front style AC Plug
    AGEuropean front style AC Plug
    AJJapanese front style AC Plug
    AKKorean front style AC Plug
    ABBritish front style AC Plug
    ARRussian front style AC Plug
    AXInterchangeable front style AC Plug
    ACChinese front style AC Plug
    ABSSingaporean plug(changeable)
    AA1Argentina front style AC Plug
    AUMMexico front style AC plug
    H_or C_Side style plugHU/CUUS side style AC Plug
    HA/CAAustrialian side style AC Plug
    HG/CGEuropean side style AC Plug
    HJ/CJJapanese side style AC Plug
    HK/CKKorean side style AC Plug
    HB/CBBritish side style AC Plug
    HR/CRRussian side style AC Plug
    HX/CXInterchangeable side style AC Plug
    HC/CCChinese side style AC Plug
    Z_Inline style plugZUUS inline style AC Plug
    ZAAustrialian inline style AC Plug
    ZGEuropean inline style AC Plug
    ZJJapanese inline style AC Plug
    ZKKorean inline style AC Plug
    ZBBritish inline style AC Plug
    ZRRussian inline style AC Plug
    ZXInterchangeable inline style AC Plug
    ZCChinese inline style AC Plug
    E _Applicance typeE1Input with type C14/C6 used
    E2Desk-top input with type C8 used
    E3Fixed power cord ungrounded
    E4Fixed power cord grounded

    FAQ

    1.Are you a manufacturer or trading company?
    We are a factory with 12000 ㎡ plant and more than 400 staffs in 8 production lines
    Currently there are 2 production lines are expecting for orders,
    Which means 1,600,000~1,800,000PCS monthly production capacity available for your orders.

    2.Why choose us?
    We are one-stop solution for high quality power adapter & switching power supply.
    Fomerly as a wholly-owned subsidiary of "Dongguan Gangqi Group" which R&D & manufacture power adapters since 2004.
    3.What safety certificate do you have?
    We got safety standards inculding but not limited to
    UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.

    4.How about the energy efficiency?
    All our adapters can meet level VI efficiency and ROHS,REACH compatible.

    5.How about sample? For free?
    Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.
    6.How long can we get samples?
    3 ~ 5 days for regular adapters or led driver.
    And 20-25 work days for mass production.

    7.What is MOQ?
    Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
    like big quantity for the whole order but small quantity for trial order of each model.

    8.Do you accept OEM/ODM service? Can I have my own logo on the adapter?
    Yes, OEM or ODM is available.

    9. What Customers you company have Served?
    Customer groups include well-known brand companies especially in small household appliances & Led lighting industry such as
    Shark,invitop,Wilit, Interplus,ELECTROLUX,LG,Xiaomi,Haier,Midea,covering many countries and regions around the world.
