EN61347 30W 12V 2.5A Wall Power Adapter For Lamp Usage

    Buy cheap EN61347 30W 12V 2.5A Wall Power Adapter For Lamp Usage from wholesalers

    Buy cheap EN61347 30W 12V 2.5A Wall Power Adapter For Lamp Usage from wholesalers
    • Buy cheap EN61347 30W 12V 2.5A Wall Power Adapter For Lamp Usage from wholesalers

    EN61347 30W 12V 2.5A Wall Power Adapter For Lamp Usage

    Ask Lasest Price
    Brand Name : Analog
    Model Number : GQ24-120250-AG
    Certification : TUV/SUD EN61347 EN60335 EN62368 EN61558
    Price : 2.8-3.5USD
    Payment Terms : T/T
    Supply Ability : 1,600,000~1,800,000PCS/Month
    Delivery Time : 10-25 work days
    • Product Details
    • Company Profile

    EN61347 30W 12V 2.5A Wall Power Adapter For Lamp Usage

    TUV/SUD EN61347 30W 12V 2.5A Wall Mounte Power Adapter for lamp

    BZ024-120250-AG Power Adapter


    How to Choose the Right AC Adapter for Your Device?

    1. Determine the type of plug used in your area;

    2. Determine the input interface type of your device;

    3. Determine whether the output voltage and current of the adapter match the input voltage and current of the equipment;

    4. Confirm the safety regulations corresponding to your equipment type


    Adantages

    1. AC / DC Plug -- improve the contact stability of the plug by containing conductive metal shrapnel

    2. End Buffer Design -- After rigorous bending experiments,the Power Adapter is strong and resistant for pulling

    3. Bold pure copper wire --Transmission voltage loss is smaller and much more stable

    4. Improve heat dissipation performance by adequate spacing

    5. Improve efficiency by using vertical anti-interference high frequency transformer

    6. We went through multiple tests to make sure the product you recive is of great quality

    Specification Datasheet Table


    24W series
    Output Voltage12 Volt
    Output Current2.5 Amp
    Output Power30 Watt
    Input Voltage & Frequency90VAC ~ 264VAC, 47~63 HZ
    Maximum AC CurrentPlease refer to the specification datasheet for approval
    Input Inrush Current40A(RMS) Max, full load tested @AC230V 50HZ
    EfficiencyVI
    ProtectionOVP , OCP , OTP , SCP & Input Protection
    Environmental requirementsOperating Temperature0~40 Calcium Degree,
    Storage Temperature-40~70 Calcium Degree
    Operating Humidity5%~90% Noncondensing
    Storage Humidity5%~90% Noncondensing
    ReliabilityWarranty2 year (about 2.28 years for 24-hour-operation a day)
    MTBF>20,000 hour
    Insulation Resistanc> 30MΩ @ 500VDC; 60S
    Hi-PotMeet different safety standard
    Leakage Current0.25mA Max, full load tested @AC230V 50HZ
    Compliance with EU directives law & regulationsRoHS,REACH,PAHS
    Safety StandardCertificateUL / ETL / FCC / CE / GS / UKCA / PSE / KC / SAA / EAC / BIS / ICBR / CCC
    StandardsEN61347 EN61558 EN62368 EN60335
    EMCEN55014-1 / EN55014-2 compliance
    ESD( Air discharge@ 8KV , Contact discharge@ 6KV, ( IEC61000-4-2 )
    Surge±1KV @ common or different mode


    EN61347 30W 12V 2.5A Wall Power Adapter For Lamp Usage

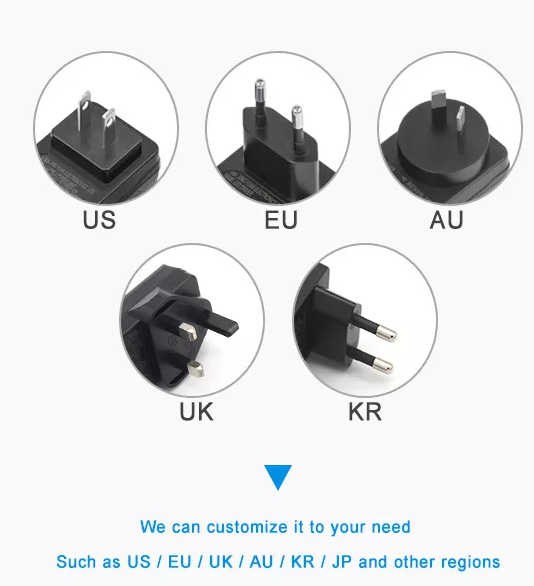

    We can customize the plug according to your need, such as US / EU / UK / AU / KR /JP and other regions

    A power supply for electronic devices. Also called an "AC adapter" or "charger," power adapters plug into a wall outlet and convert AC to a single DC voltage. Computers use multiple DC voltages, and the power adapter is the external part of the power supply for a laptop.
