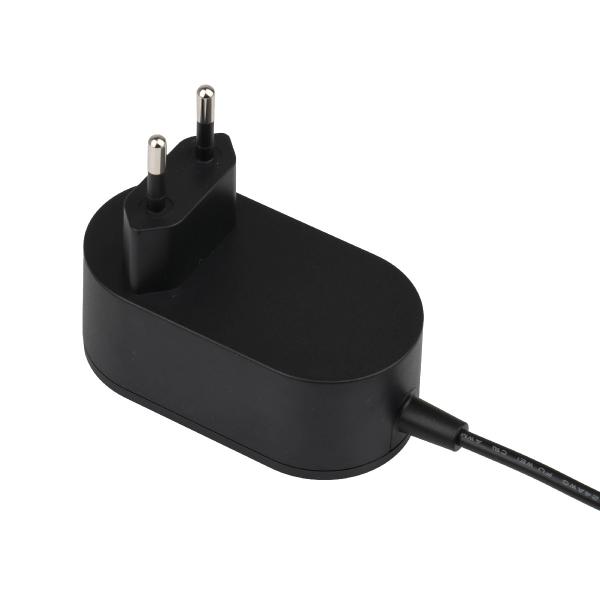

    ETL1310 Certificate 12V 1A Power Adapter Wall Mounted AC For LED

    Ask Lasest Price
    Brand Name : Analog
    Model Number : GQ15-120100-AG
    Certification : ETL1310/IEC61347
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1,600,000~1,800,000PCS/Month
    Delivery Time : 10-25 work days
    • Product Details
    • Company Profile

    ETL1310 Certificate 12V 1A Power Adapter Wall Mounted AC For LED

    ETL1310 Certificate 12V 1A Power Adapter Wall Mount AC Adapter With EU Plug for LED


    What kind of adapter do I need for LED lights?

    Mostly will need a 12V power supply for LED lights

    12V power adapter is widely used in lighting field, especially desk lamp.

    It is generally composed of shells, transformers, inductors, capacitors, control ICs, PCB boards and other components.

    Its working principle is converted from AC input to DC Output.


    Application:Indoor lighting products


    Product Highlights:

    94V-0 PC shell, 750℃ Glow WireTest bearable and environment friendly;

    Product temperature below industry standard,more safety and longer lifetime;

    Multiple DC connector could be customized,more choice for your products;


    Specification Datasheet Table


    15W series
    Output Voltage12V
    Output Current1A
    Output Power12W
    Input Voltage & Frequency90VAC~264VAC, 47~63HZ
    Maximum AC CurrentPlease refer to the specification datasheet for approval
    Input Inrush Current40A(RMS) Max, full load tested @AC230V 50HZ
    EfficiencyVI
    ProtectionOVP,OCP,OTP,SCP & Input Protection
    Environmental requirementsOperating Temperature0~40 ℃,
    Storage Temperature-40~70 ℃
    Operating Humidity5%~90% Non-condensing
    Storage Humidity5%~90% Non-condensing
    ReliabilityWarranty2 year (about 2.28 years for 24-hour-operation a day)
    MTBF>20,000 hour
    Insulation Resistanc> 30MΩ@500VDC; 60S
    Hi-PotMeet different safety standard
    Leakage Current0.25mA Max, full load tested @AC230V 50HZ
    Compliance with EU directives law & regulationsRoHS,REACH,PAHS
    Safety StandardCertificateUL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR/CCC
    StandardsETL1310, IEC61347,GB4706,K60950
    EMCEN55014-1/EN55014-2 compliance
    ESD(Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2)
    Surge±1KV @ common or different mode
